GreenLiFE Battery

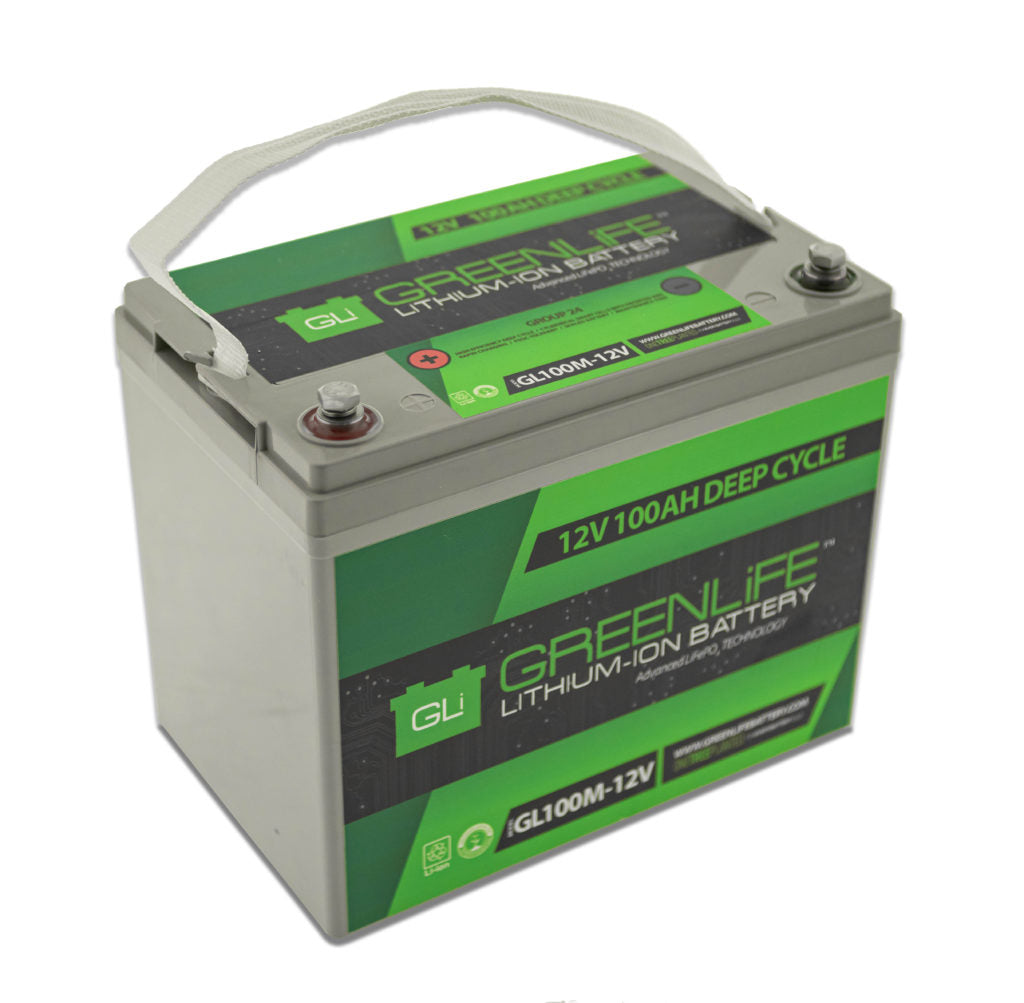

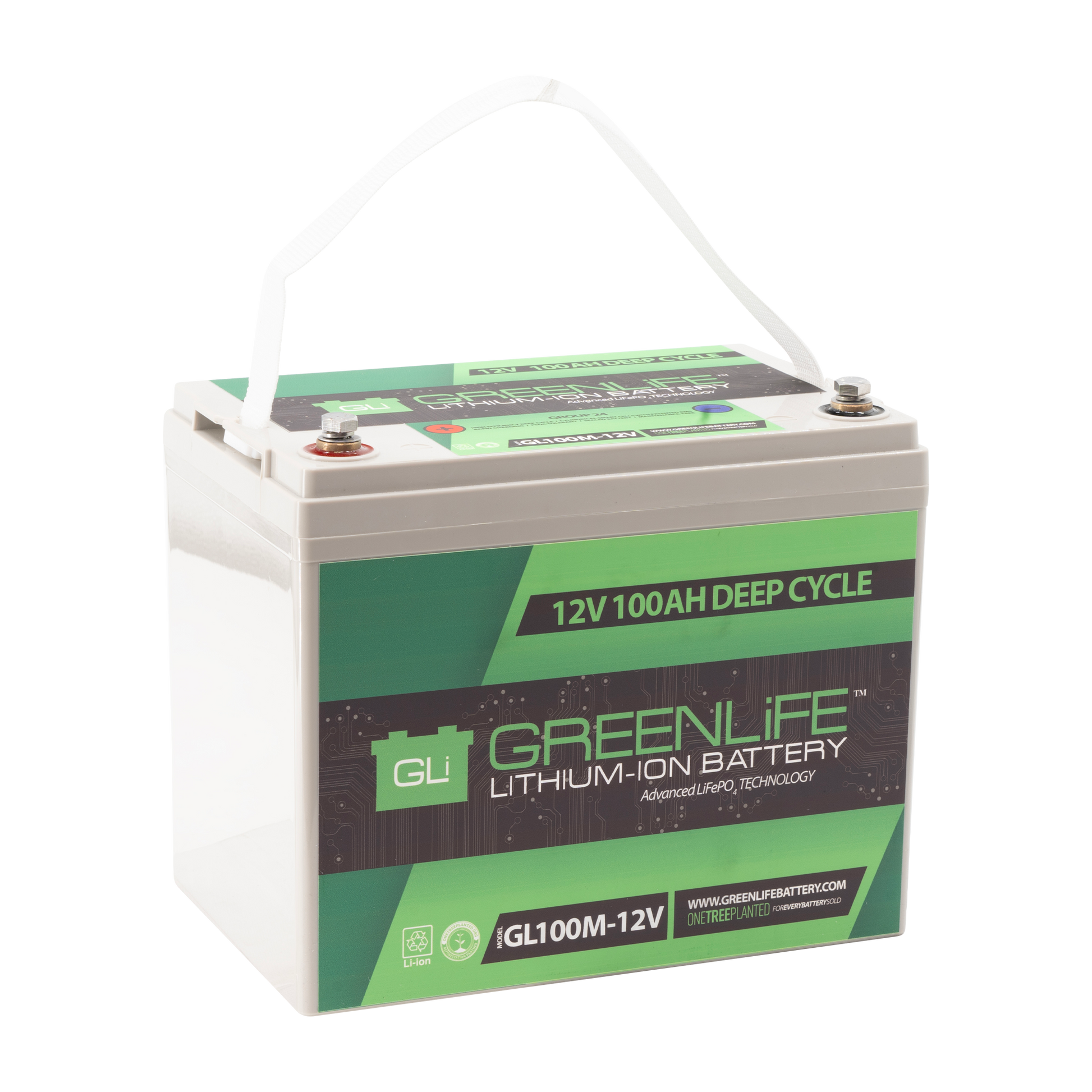

GreenLiFE GL100M – 12V 100A Lithium Ion Battery

GreenLiFE GL100M – 12V 100A Lithium Ion Battery

Regular price $779.00 USD
Regular price $779.00 USD Sale price $779.00 USD
Sale Sold out
  • 1 YEAR WARRANTY
  • HIGHEST STABILITY
  • DISPATCHED QUICK
The GreenLiFE® 12V 100AH Lithium Ion Battery is the perfect replacement from a group 24 AGM, GEL, or Lead Acid Battery. The GL100M is designed as a “drop in replacement” meaning all you have to do is take out your old group 24 battery and place the GL100M in the same way.
View full details

GreenLiFE Battery

GreenLiFE GL100M – 12V 100A Lithium Ion Battery Specifications

PRODUCT DESCRIPTION

GreenLiFE® offers an innovative battery technology that's significantly lighter than lead-acid batteries, approximately 70% lighter for comparably sized units. These versatile batteries can be mounted and operated in any orientation, due to their solid and spill-free construction. The rapid charging feature allows them to be fully recharged in less time than traditional batteries, providing a quick and efficient energy solution.

These batteries stand out for their stable voltage even under high usage. They maintain a higher voltage, which translates to more power when it's most needed. Moreover, they come with a remarkable charge efficiency. When charging a lead-acid battery, one could lose between 15 to 30% of the energy due to heat loss, but a GreenLiFE® battery is 99.1% efficient, accepting nearly all of the power from chargers or solar panels.

With a self-discharge of less than 3% per month, a GreenLiFE® battery retains nearly all of its charge for over a year, contrasting with lead batteries which can lose up to 30% capacity monthly. The batteries are vibration-proof, with bolted cells for solid construction, and temperature-proof, operating reliably from -4F to 140F.

Offering four times the energy density of lead batteries, GreenLiFE® batteries can be fully discharged without damage, providing superior usable capacity. Built with 3.2V 5AH cylindrical Lithium Ion Cells, each equipped with an explosion-proof stainless steel case, flame retardant electrolyte, and a thermal fuse, these batteries are designed for safety and reliability.

Consistency is another hallmark of GreenLiFE®. The company's 3.2V 5AH cells are mass-produced, with capabilities reaching 500,000 cells per day. The design incorporates bolted cells to improve strength, conductivity, and overall quality. Additionally, these batteries include lengthwise circuit boards for balancing and short circuit protection. If a cell fails, the circuit boards remove it from the system, allowing the battery to function normally at 12V with reduced capacity.

Furthermore, GreenLiFE® batteries are known for their longevity, designed to last for 3000 to 5000 cycles. They're used globally in commercial, government, recreational, and military applications, demonstrating their reliability and performance. Common applications range from electric vehicles, RVs, boats, and cars, to robotics, telecommunications, and military use. The company's proven technology and reliability have made it an industry leader, the world's top supplier of drop-in replacement lithium-ion batteries.

BATTERY SPECIFICATIONS

Size & Weight ---
Weight 25.8 lbs
Dimensions 10.5 × 6.6 × 8.5 in
Product Model

JG-4IFR12.8-100-Y(26650-3.2V-4S27P)

Normal Voltage

12.8V

Rated Capacity

100Ah(C5)

Min Capacity

97Ah(C5)

Energy

About 1280Wh

Internal Resistance

≤40mΩ

Size

(260±1)mm (167±1)mm(212±2)mm

weight

11.4±0.3kg

Charge Voltage

14.4±0.15V

Standard Cutoff Voltage

About10.0V

Charge Current

≤20A

Charging cut-off current

1A~2A

Discharge Current

Normal Current = 50A
Max Continuous Current = 50A-100A(≤5min)

Passive Protection

Over charge protection, Over discharge protection, Temperature protection, Balanced function

positive

M8 hole

Negative

M8 hole

Charge Retention

After charging according to standard 3.2, placing the battery for 28 days under the standard test
conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%.

Cycle time

The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to
3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1
cycle time).

SAFETY & PROTECTION

Built in automatic Battery Protection System Internal
Automatic Low Votlage Disconnect 10.5v
Automatic Short Circuit Protection: Instant
Automatic Over Voltage Protection 15.8v
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes
Chemistry LiFeP04

SUITABLE FOR

FISH FINDERS, FLASHERS, & BOATING ELECTRONICS

ICE FISHING

LIFEPO4 REPLACEMENT FOR SLA 12V

ELECTRIC VEHICLE ACCESSORY BATTERY

INDUSTRIAL BATTERIES

SCOOTER BATTERIES

SOLAR LIGHTING

ROBOTICS

HIKING

CAMPING

REMOTE POWER

OUTDOOR ADVENTURES

Temperature Performance

°C
°F
Usable Capacity
60°C 140°F 97%
50°C 122°F 99%
40°C 104°F 100%
30°C 86°F 104%
20°C 68°F 98%
10°C 50°F 92%
0°C 32°F 83%
-10°C 14°F 80%
-20°C -4°F 70%
