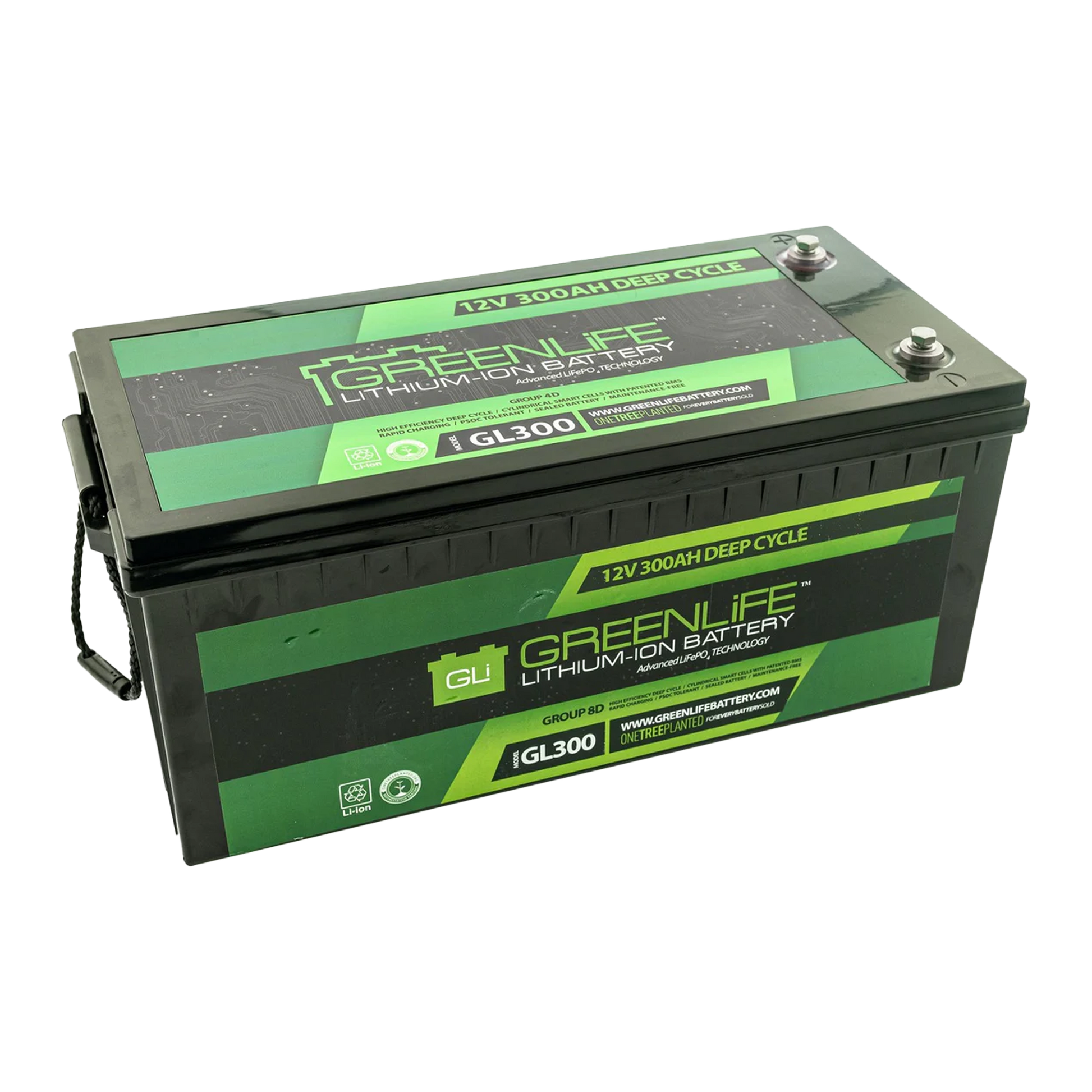

GREENLIFE GL300 – 12V 300AH LITHIUM ION BATTERY
GREENLIFE GL300 – 12V 300AH LITHIUM ION BATTERY
- 1 YEAR WARRANTY
- HIGHEST STABILITY
- DISPATCHED QUICK
GREENLIFE GL300 – 12V 300AH LITHIUM ION BATTERY Specifications
PRODUCT DESCRIPTION
GreenLiFE® offers an innovative battery technology that's significantly lighter than lead-acid batteries, approximately 70% lighter for comparably sized units. These versatile batteries can be mounted and operated in any orientation, due to their solid and spill-free construction. The rapid charging feature allows them to be fully recharged in less time than traditional batteries, providing a quick and efficient energy solution.
These batteries stand out for their stable voltage even under high usage. They maintain a higher voltage, which translates to more power when it's most needed. Moreover, they come with a remarkable charge efficiency. When charging a lead-acid battery, one could lose between 15 to 30% of the energy due to heat loss, but a GreenLiFE® battery is 99.1% efficient, accepting nearly all of the power from chargers or solar panels.
With a self-discharge of less than 3% per month, a GreenLiFE® battery retains nearly all of its charge for over a year, contrasting with lead batteries which can lose up to 30% capacity monthly. The batteries are vibration-proof, with bolted cells for solid construction, and temperature-proof, operating reliably from -4F to 140F.
Offering four times the energy density of lead batteries, GreenLiFE® batteries can be fully discharged without damage, providing superior usable capacity. Built with 3.2V 5AH cylindrical Lithium Ion Cells, each equipped with an explosion-proof stainless steel case, flame retardant electrolyte, and a thermal fuse, these batteries are designed for safety and reliability.
Consistency is another hallmark of GreenLiFE®. The company's 3.2V 5AH cells are mass-produced, with capabilities reaching 500,000 cells per day. The design incorporates bolted cells to improve strength, conductivity, and overall quality. Additionally, these batteries include lengthwise circuit boards for balancing and short circuit protection. If a cell fails, the circuit boards remove it from the system, allowing the battery to function normally at 12V with reduced capacity.
Furthermore, GreenLiFE® batteries are known for their longevity, designed to last for 3000 to 5000 cycles. They're used globally in commercial, government, recreational, and military applications, demonstrating their reliability and performance. Common applications range from electric vehicles, RVs, boats, and cars, to robotics, telecommunications, and military use. The company's proven technology and reliability have made it an industry leader, the world's top supplier of drop-in replacement lithium-ion batteries.
BATTERY SPECIFICATIONS
Size & Weight | --- |
---|---|
Weight | 72 lbs |
Dimensions | 20.7 × 9.4 × 8.7 in |
Product Model |
GL300 |
Normal Voltage |
12.8V |
Rated Capacity |
300Ah(C5) |
Min Capacity |
291.2Ah(C5) |
Energy |
About 3840Wh |
Internal Resistance |
≤30mΩ |
Size |
(522±3)mm*(238±2)mm*(218±2)mm |
weight |
31.3±1kg |
Shell material |
Plastic |
Charge Voltage |
14.4±0.15V |
Standard Cutoff Voltage |
about 10.0V |
Charge Current |
≤60A |
Charging cut-off current |
3000mA~6000mA |
Discharge Current |
Normal Current 100A |
15 Passive Protection |
Over charge protection, Over discharge protection, Temperature protection, Balanced function |
Positive |
M8 hole |
Negative |
M8 hole |
Charge Retention |
After charging according to standard 3.2, placing the battery for 28 days under the standard test |
Cycle time |
The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to |
SAFETY & PROTECTION
Built in automatic Battery Protection System | Internal |
---|---|
Automatic Low Votlage Disconnect | 10.5v |
Automatic Short Circuit Protection: | Instant |
Automatic Over Voltage Protection | 15.8v |
Automatic Reverse Polarity Protection | Instant |
Internal Cell Thermal Safety Fuse | Yes |
Flame Retardant Electrolyte | Yes |
Automatic Internal Cell Balancing | Yes |
Automatic Fault Recovery | Yes |
Explosion Proof Stainless Steel Cells | Yes |
Chemistry | LiFeP04 |
SUITABLE FOR
FISH FINDERS, FLASHERS, & BOATING ELECTRONICS
ICE FISHING
LIFEPO4 REPLACEMENT FOR SLA 12V
ELECTRIC VEHICLE ACCESSORY BATTERY
INDUSTRIAL BATTERIES
SCOOTER BATTERIES
SOLAR LIGHTING
ROBOTICS
HIKING
CAMPING
REMOTE POWER
OUTDOOR ADVENTURES
Temperature Performance
°C | °F | Usable Capacity |
---|---|---|
60°C | 140°F | 97% |
50°C | 122°F | 99% |
40°C | 104°F | 100% |
30°C | 86°F | 104% |
20°C | 68°F | 98% |
10°C | 50°F | 92% |
0°C | 32°F | 83% |
-10°C | 14°F | 80% |
-20°C | -4°F | 70% |
